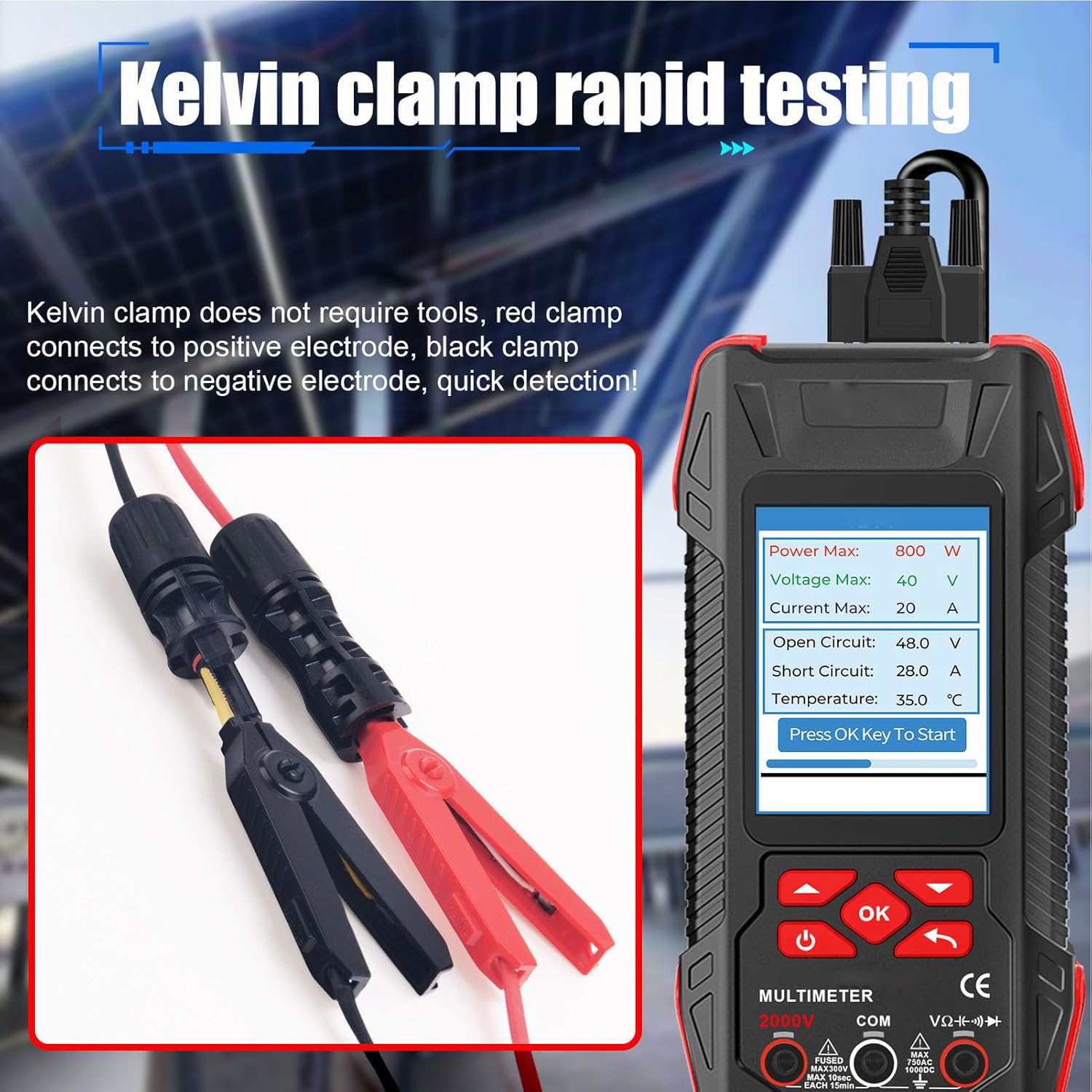

Solar Panel Tester, 60000 Count 2000w Photovoltaic Multimeter Ac Dc High Voltage Range Solar Mppt Meter with Backlight LCD Screen for Solar Pv Testing

Product Description:This solar MPPT tester multimeter combines a 2000W maximum power point tracker for photovoltaic panels with a 60,000-count digital multimeter, providing a complete diagnostic tool for solar professionals. Its standout feature is the real-time color display of MPPT curves (voltage, current, power) for dynamic performance analysis, alongside the ability to measure high AC/DC voltages, resistance, capacitance, and frequency, all housed in a portable, backlit unit with comprehensive electrical protection.Item Type: Solar MPPT Tester MultimeterSolar Panel Tester Specs:Solar Voltage: 3-90.00V, ±1.5%+5Solar Current: 0-40.00A, ±1.5%+5Solar MPPT Power: 0-2000.0W, ±1%+5Sampling Points: 1000 Digital groupsVoltage Curve Color: GreenCurrent Curve Color: BlueCurve of Power Color: RedData Recording: 100 SetsDisplay Screen: 240x320 ResolutionInterface: DB9Protecting Functions: Overvoltage, Reverse Polarity, Overcurrent, Overtemp protectingMultimeter Specs:Display: 60000 CountsHigh DC Voltage: 2000V (±0.8%+0.8)High AC Voltage: 2000V (±1.5%+0.5)DC Voltage: 600mV-1000V (±0.5%+0.3)AC Voltage: 600mV-750V (±0.8%+0.5)Resistor: 600.00Ω-60MΩ (±1%+0.6)Capacitance: 6.0000nF-60MF (±2%+0.6)Frequency: 6.0000Hz-6MHz (±1%+0.1)Continuity Test: Diode Test: SupportedOther Specs:Screen: 240x320 resolutionLanguages: Chinese, English, German, French, SpanishBattery: 1 x 1500mAh rechargeable li ion batteryPower: Requires 5V 2A 10W or higher power source (charger not included)Low Battery Detection Function: SupportedAuto Power Off: SupportedMaterial: ABS and TPRPackage List：1 x Main Unit1 x Storage Bag1 x Test Cable2 x Probe1 x USB Cable1 x User Manual

• 【Dual-Function MPPT Tester & Multimeter】​ This tool integrates a specialized solar MPPT tester with a high-precision 60,000-count digital multimeter, allowing you to diagnose photovoltaic system performance and perform standard electrical measurements (AC/DC voltage, resistance, capacitance, frequency) with a single device. The portable design of photovoltaic multimeter saves solar installers, maintenance technicians, and engineers from carrying multiple instruments.
• 【Real-Time MPPT Curve Visualization】​ Featuring a unique color display that plots real-time voltage (green), current (blue), and power (red) curves, this solar panel meter provides a dynamic, visual analysis of a solar panel's power output characteristics under varying loads and environmental conditions. This MPPT curve display, intuitive and accurate functionality moves beyond static readings.
• 【High-Capacity & Accurate Measurements】​ Capable of testing solar systems up to 2000W (Pmax), 2000V AC/DC, and 40A short-circuit current, with a basic accuracy of ±1.5%+5, this smart multimeter device handles a wide range of residential and small commercial photovoltaic modules. The professional testing capability, combined with 100 sets of internal data recording, provides reliable data for R&D, quality control, field maintenance, and post-installation verification.
• 【Portable Design with Clear Interface】​ Housed in a compact body with a 3.2-inch high-resolution backlit LCD screen, an integrated LED work light for dark areas, and a provided storage bag, this tool is built for convenience and clarity during fieldwork. The portable with light design, supporting multiple languages, allows technicians to easily view and interpret complex data on rooftops or in electrical rooms.
• 【Robust Safety & Protection Features】​ Designed with a TPR non-slip casing and multiple built-in protections—including safeguards against overvoltage, overcurrent, reverse polarity, and overtemperature—this tester prioritizes user and device safety during operation. This comprehensive protecting suite, powered by a rechargeable 1500mAh battery, gives professionals confidence when working with high-power electrical systems.
